60-100MW Annual Full Auto Solar Panel Assembly Line

SHIFTS3
FACTORY SIZE1800㎡
ANNUAL CAPACTY60-100
WORKING TYPEAutomatic
POWER REQUEST>800KW

60-100MW Annual Full Auto Solar Panel Assembly Line

Many customers want to open solar panel making plant, but they don’t know the manufacturing process and how to configure solar panel manufacturing equipment so the idea has never been realized.

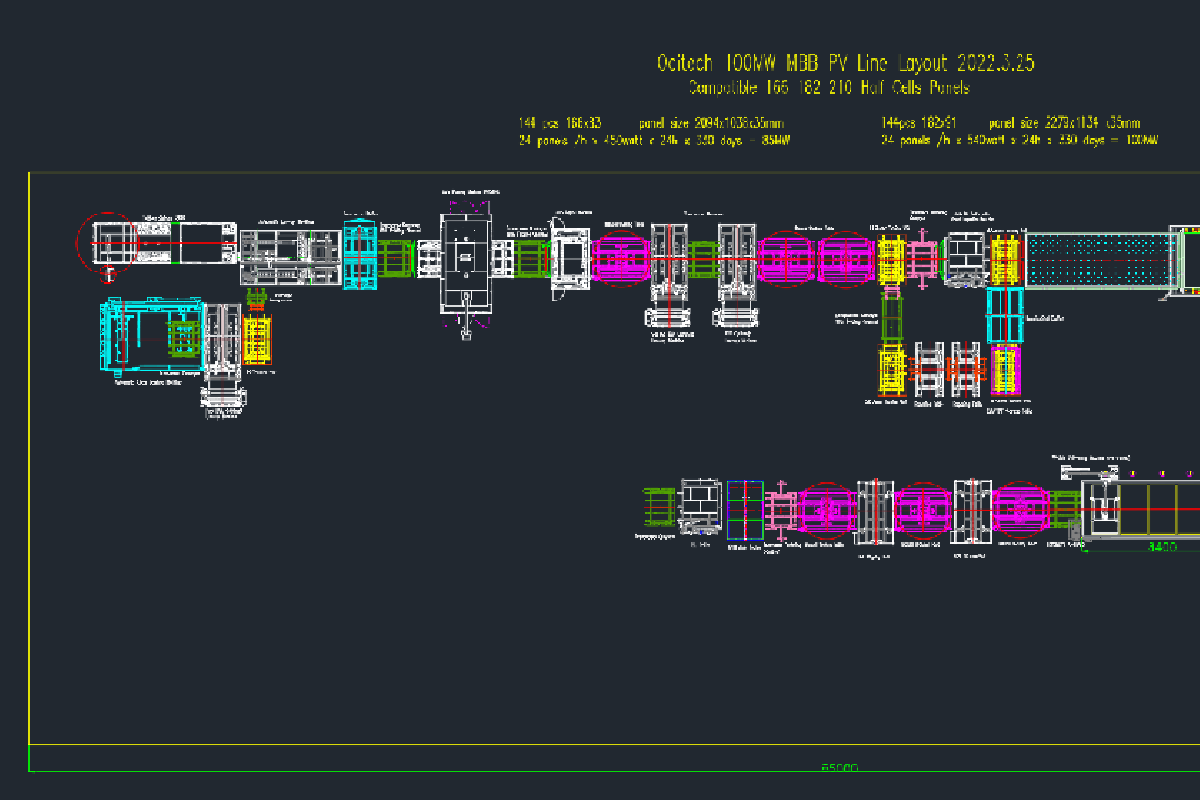

1. Factory Layout Drawing

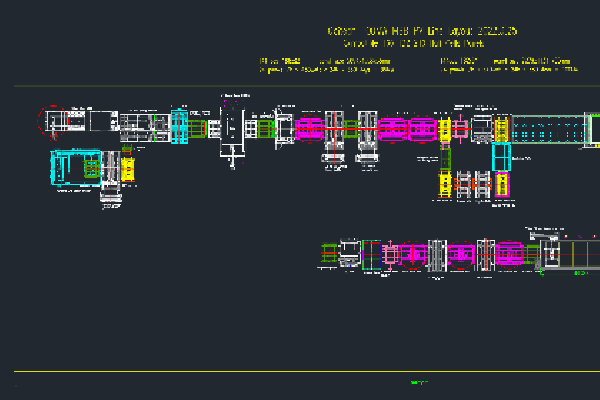

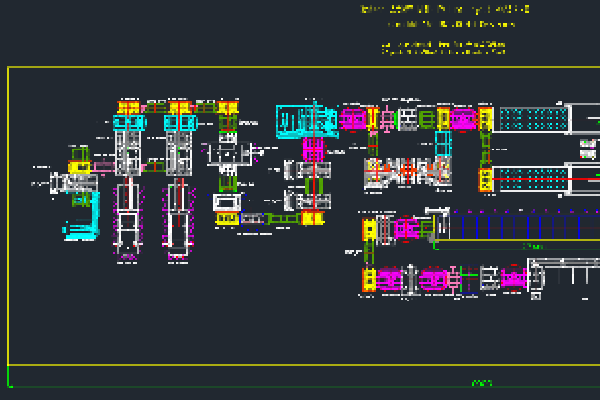

solar panel production line


Solar module process flow

2. Mainly manufacturing process

Step 1: Test solar cell efficiency: make sure the same power cell to be used in one solar panel;

Step 2: Cut complete solar cell into small pieces;

Step 3: Welding solar cell: welding solar cell to string solar cell;

Step 4: Cutting EVA/TPT: according to the solar panel size to cut the EVA and TPT in the designed size;

Step 5: Lay up: achieve solar string automatic laying on glass EVA, and transporting module to the next process;

Step 6: Visual inspection: check the dirty for the Raw materials;

Step 7: Defect check: uses the EL tester machine to identifying micro-cracks, broken   finger wires, and other invisible defects in solar modules;

Step 8: Lamination: after EL tester checking the defects,  use solar panel Laminate the raw material into solar panel;

Step 9: Trimming: when the Solar panel get cooling after coming out from laminator,  It need Cutting the edges,  we call Trimming;

Step 10: Glue: use sealant to glue up on aluminum frame;

Step 11: Framing: use the framing machine to install the aluminum frame;

Step 12: Glue: fill the sealant to aluminum alloy after framing;

Step 13: Install junction box: glue the junction box and install it on the solar panel;

Step 14: IV Test: use solar simulator to test the finished solar panel Electrical performance test like power, current etc and record;

Step 15: Test the panel withstand voltage insulation;

Step 16: Defect check: uses the EL tester machine to identifying micro-cracks, broken finger wires and other invisible defects of finished solar modules;

Step 17: Label;

Step 18: Clean the surface and package.


3. Function & Picture of Main Machines of 60-100MW Annual Full Auto Solar Panel Assembly Line


Solar Cell Tester

Function:

Use to test the electrical performance of Mono-Si or Poly-Si solar cell pieces and record the results in files.

Picture:

solar cell tester

 Solar Cell Laser Cutting Machine (no water no destructive)

Function:

Scribing or cutting the Solar Cells and Silicon Wafers in solar PV industry, including the mono-si (mono crystalline silicon) and poly-si (poly crystalline silicon) solar cells and silicon wafer.


solar cell laser cutting machine

· MBB PV Cell Soldering Stringer

Function:

MBB PV Cell Soldering Stringer is used to weld the solar cells one by one through copper ribbon, and the cells are connected in series to form a string. The entire welding process is fully automated.

Picture:

MBB PV Cell Soldering Stringer

· Automatic Solar Cell String Lay Up Machine

Function:

Achieving solar string automatic laying on glass EVA, and transporting module to the next process

Picture:


solar cell string lay up machine

· Automatic Solar Cell String Bussing Machine

Function:

Adopt the method of separating the cell string from the glass, and grab the cell string in the air, then to interconnected solder the head, middle and tail bus bar of the middle wire edition module at a certain height; It has the function of a roll feeding bus bar, bending U and L leads upwards.

Picture:

solar cell string bussing machine


· Automatic Solar Panel EL Defect Tester with Visual Inspecting Function

Function:

Used in testing the solar cell crack,breakage, black spot,mixed wafers,process defect,cold solder joint phenomenon.

Picture:

solar panel EL defect testersolar EL defect tester

· Automatic Solar Laminator

Function:

Solar panel laminator is a mechanical device that presses multiple layers of materials together.

Picture:

Solar Laminator PV module  Laminator

· Automatic Solar Panel Framing Machine

Function:

Automatic gluing & framing machine is used to install the aluminum frame and automatically overflow glue.

Picture:

solar panel framing machine

· Automatic Solar Panel IV Tester

Function:

Automatic solar panel IV tester is used to test the electric performance of Mono-Si or Poly-Si solar modules and record the results in files .

Picture:

Solar panel IV tester PV module IV tester

4. Packaging and transportation of 60-100MW Annual Full Auto Solar Panel Assembly Line
